Focused Force Angioplasty for
Controlled Lesion Preparation

Focused Force Angioplasty for Safe and Controlled Dilatation

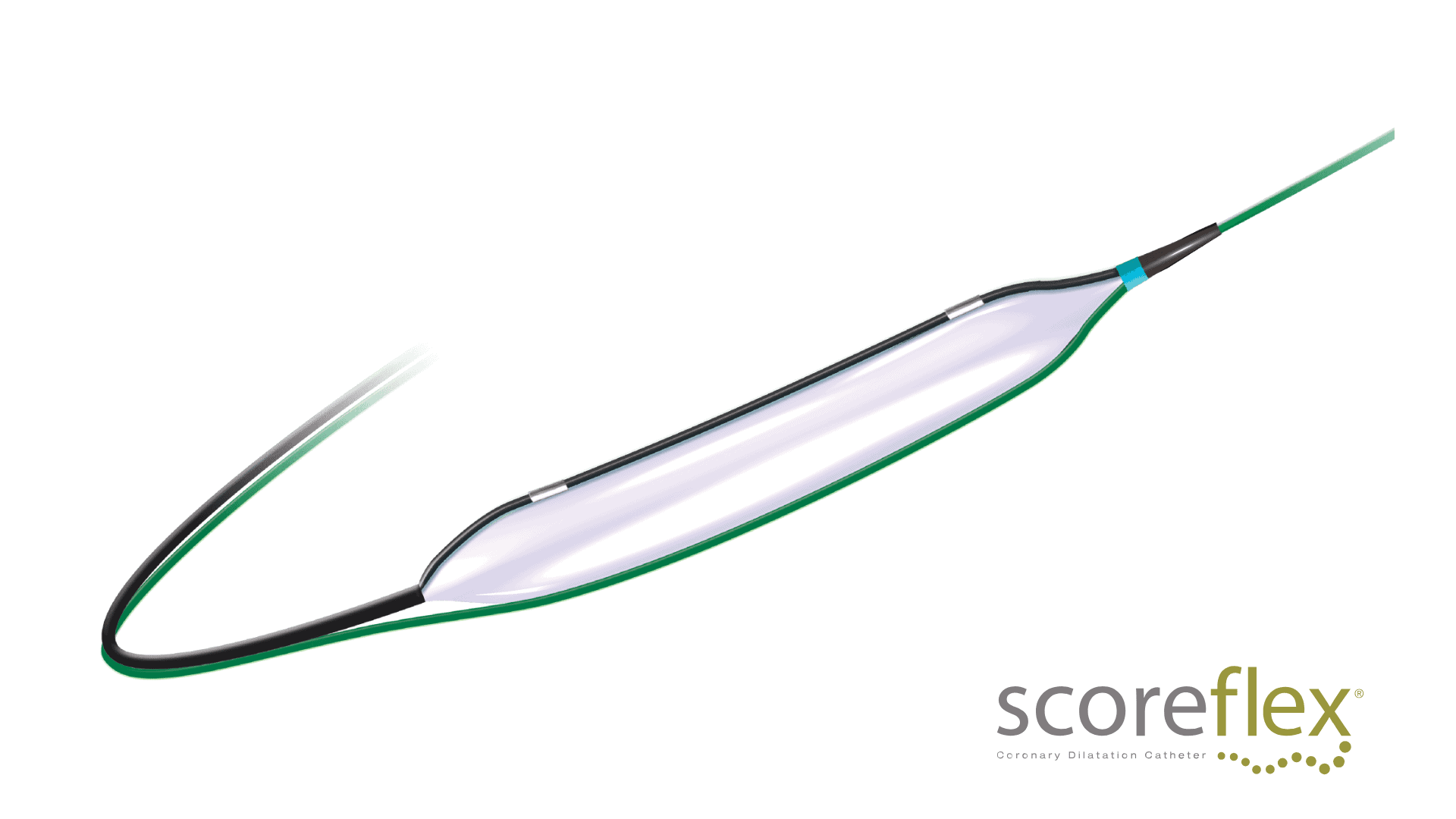

Scoreflex is a focused force dilatation balloon with a dual-wire system which creates a focal stress pattern to facilitate safe and controlled plaque modification at lower resolution pressure.

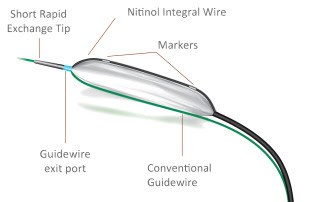

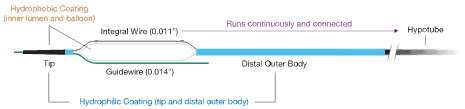

Scoreflex Construction

The (conventional) guidewire exits proximal to the tip and acts as the second scoring element

Catheter for excellent deliverability

Continuous hub-to-tip metallic construction for enhanced pushability, with a
combination of hydrophilic and hydrophobic coatings to minimize friction

Hydro-X hydrophilic coating is a water-absorbing, very slippery coating that reduces friction during lesion crossing

Invio hydrophobic coating is a water-repelling, slippery coating that reduces guidewire friction

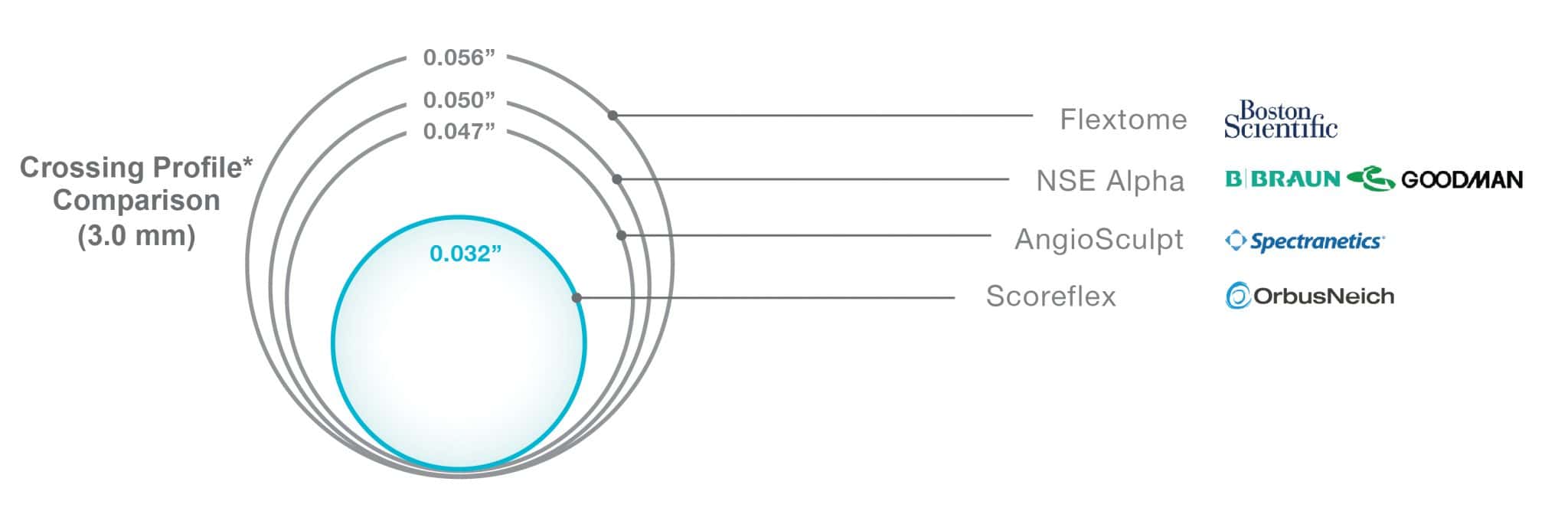

Crossing profile

Low Dilatation Pressure, Big Dilatation Effect

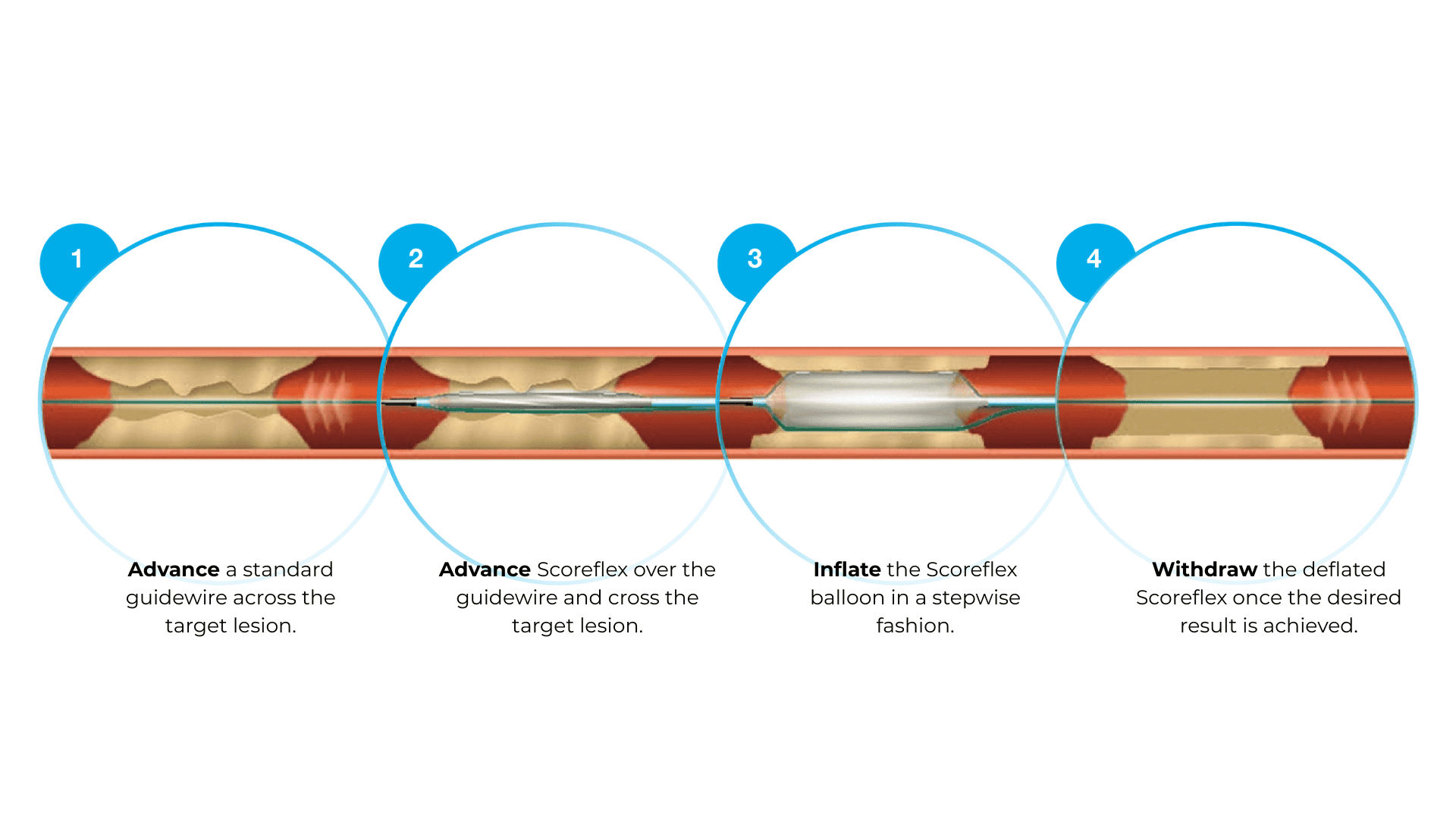

Scoreflex is a focused force dilatation balloon that comes with a dual wire system which enables effective dilatation under lower inflation pressure. For optimal results, a gradual step-up inflation protocol should be adopted

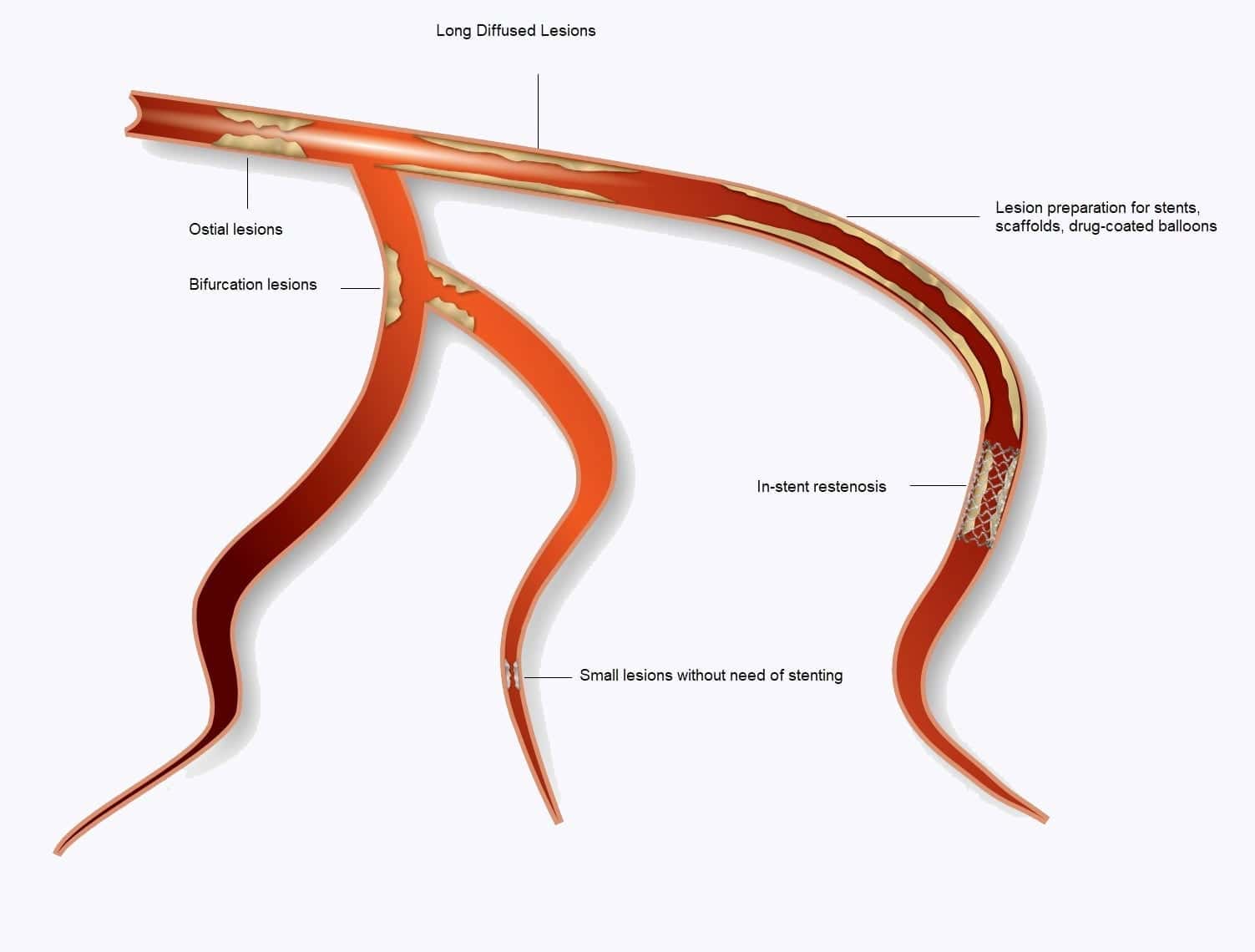

Applications

• Lesion preparation for stents, scaffolds, drug-coated balloons
• Calcified and fibrotic lesions
• Ostial lesions
• Bifurcation lesions
• Long diffused lesions
• Small lesions without need of stenting
• In-stent restenosis

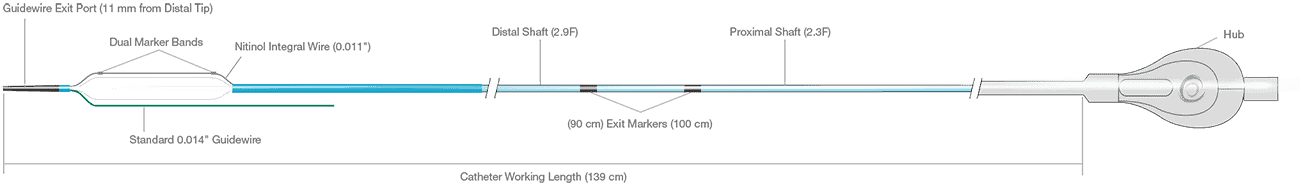

Schematic

Available Configurations
